Back-up Generators · PKGVE-40
40kVA
Standby power sized to carry the whole load the moment the mains drop, built around a turbocharged industrial engine and a Nidec alternator.
Power platform
Eicher (VECV) · Nidec
- Prime power
- 40 kVA
- Prime output
- 32 kW
- Rated current
- 57.74 A
- Voltage
- 400V
Applications
Emergency powerData & telecomsHealthcareIndustryAgricultureRemote sitesOne complete system
Everything in one enclosure.
Engine, alternator, control and acoustic canopy are matched as one set: deliver it, connect it, run it.
Eicher (VECV) EE483TC
Turbocharged · direct injection · water-cooled · 3.298 L displacement · 4 cylinders
Nidec alternator
Delivers 40 kVA at 400V, 50/60Hz, 3ph+N.
Deep Sea Electronics / DEIF Electronic AMF controller
Controller family used on the non-emission standby (VECV/Wardpower 30-160 kVA) line. Monitors engine + generator running parameters and protections, supports AMF, RS232/RS485 Modbus RTU, remote web monitoring.
Acoustic enclosure
1.5 mm CRCA acoustic canopy · < 85 dB @ 1 m (ISO 8528-10)

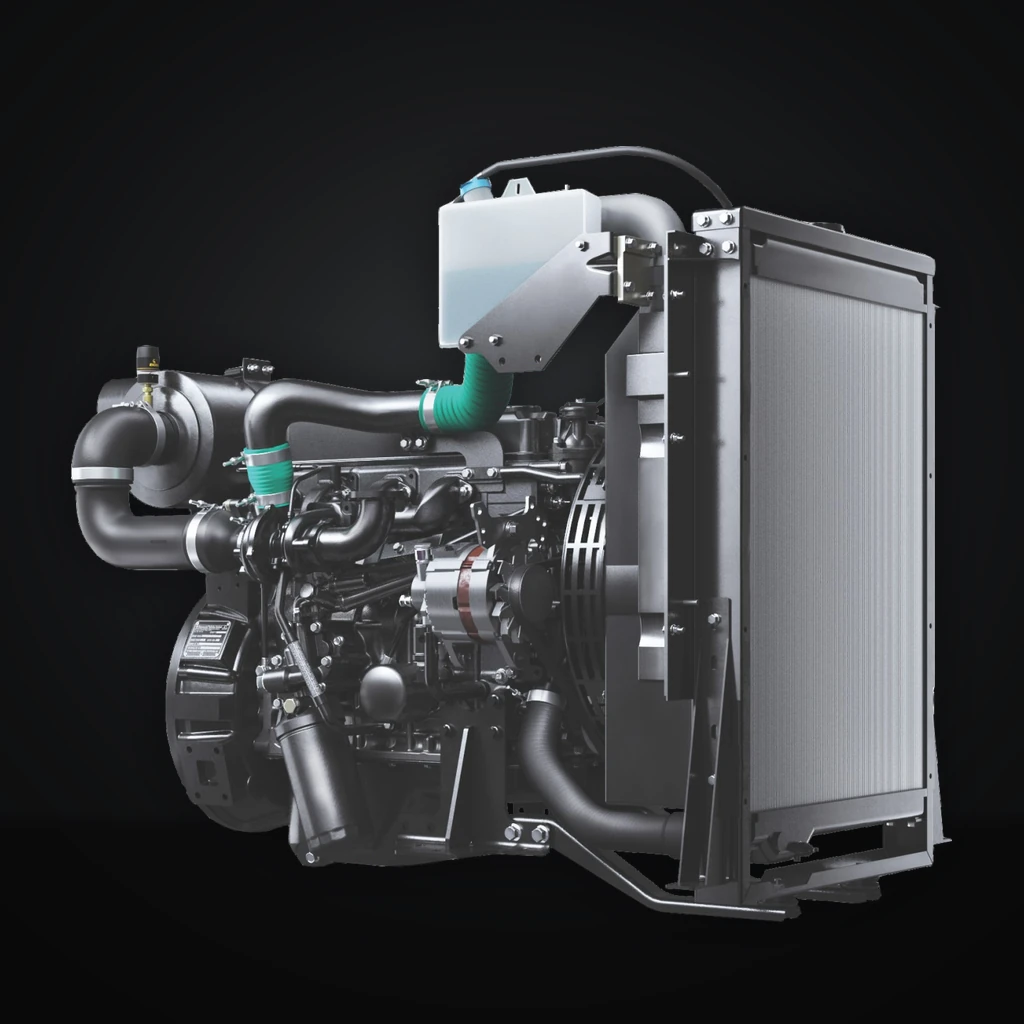

Eicher (VECV) EE483TC
The engine
Built aroundthe engine.
Eicher (VECV) EE483TC drives this set: 3.298 litres, 4 cylinders, turbocharged · direct injection · water-cooled. Rated for 110% for 1 hour in a 12-hour cycle.
- Displacement
- 3.298 L
- Cylinders
- 4
- Speed
- 1500 rpm
- Consumption
- 8.99 L/h
At a glance
Built for the site.
The physical details that matter for access, installation and service.
Weight
1050 kg
Dimensions
2250 x 1020 x 1330 mm
Noise
< 85 dB @ 1 m (ISO 8528-10)
Fuel tank
80 L
Available configuration
Anti-condensation heater
Alternator winding anti-condensation heater.
Winding temperature RTD
Alternator winding temperature RTD sensor.
Bearing temperature detector (BTD)
Alternator bearing temperature detector.
RFI suppression
Radio frequency interference suppression on the alternator.
Datasheet
Technical specifications.
PKGVE-40
Power ratings
- Prime power
- 40 kVA
- Prime output
- 32 kW
- Standby power
- 44 kVA
- Standby output
- 35.2 kW
- Rated current
- 57.74 A
- Rated voltage
- 400V
- Frequency
- 50/60Hz
- Phase
- 3ph+N
- Overload rating
- 110% for 1 hour in a 12-hour cycle
- Governing class
- A1
Engine
- Brand
- Eicher (VECV)
- Model
- EE483TC
- Mechanical output
- 38.77 kW
- Output
- 52 bhp
- Cylinders
- 4
- Arrangement
- Inline
- Displacement
- 3.298 L
- Aspiration
- Turbocharged · direct injection · water-cooled
- Speed
- 1500 rpm
- Governor
- Mechanical
- Starter rating
- 1.9 kW
- Dry engine weight
- 350 kg
Alternator & control
- Alternator brand
- Nidec
- Controller
- Deep Sea Electronics / DEIF Electronic AMF controller
- Controller brand
- Deep Sea Electronics / DEIF
Fuel & fluids
- Fuel tank
- 80 L
- Tank type
- Removable · external filling
- Consumption at 100%
- 8.99 L/h
- Consumption at 75%
- 6.93 L/h
- Oil sump
- 13 L
- Coolant capacity
- 15 L
Enclosure & physical
- Enclosure
- 1.5 mm CRCA acoustic canopy
- Noise level
- < 85 dB @ 1 m (ISO 8528-10)
- Silencer
- Internal
- Lifting
- Single point · forklift pockets · 4-point base lift
- Dimensions (L×W×H)
- 2250 x 1020 x 1330 mm
- Weight
- 1050 kg
Reference conditions
- Reference conditions
- 25 °C · 100 kPa · 30% RH
- Site altitude
- Up to 1000 m
- Ambient temperature
- Up to 40 °C · radiator rated to 50 °C
