Stage V Generators · WP-JC60PXD
60kVA
Stage V compliant power for sites where emissions are regulated. The after-treatment is built in, so the set runs where older machines cannot.
Power platform
JCB · Meccalte
- Prime power
- 60 kVA
- Prime output
- 48 kW
- Voltage
- 400V
- Phase
- 3ph
Applications
Construction sitesUrban projectsLow-emission zonesInfrastructureEventsRental fleetsOne complete system
Everything in one enclosure.
Engine, alternator, control and acoustic canopy are matched as one set: deliver it, connect it, run it.
JCB 430TAG-55
TCAE · 3 L displacement · 4 cylinders
Meccalte alternator
Delivers 60 kVA at 400V, 50Hz, 3ph.
Deep Sea Electronics DSE 7320 / 7420 controller
Auto start controller, used across WP-YN40PXD, the JCB-powered Stage V range (60-120 kVA) and the Volvo Penta back-up sets (PKGVP-200/250/320).
Acoustic enclosure
Galvanised steel, 275 gsm · 75dBA @ 7m

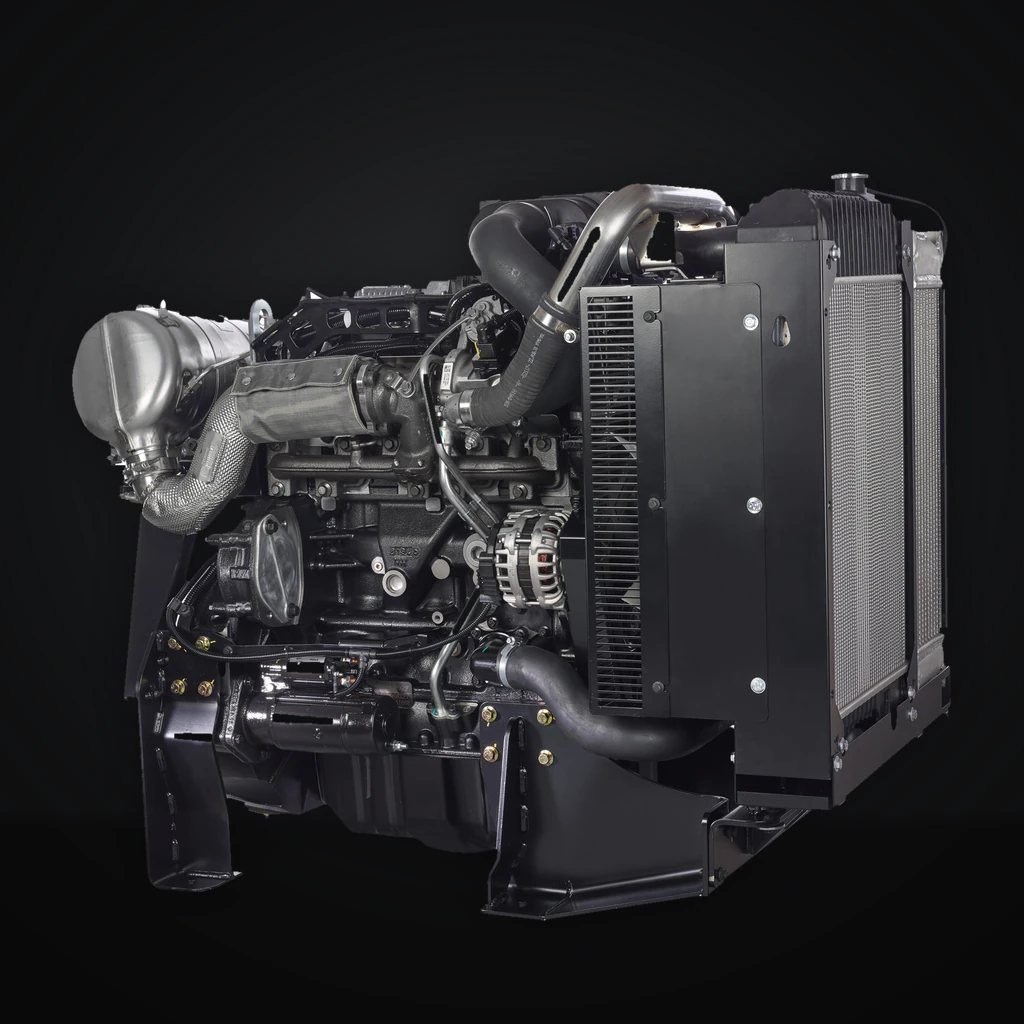

JCB 430TAG-55
The engine
Built aroundthe engine.
JCB 430TAG-55 drives this set: 3 litres, 4 cylinders, TCAE.
- Displacement
- 3 L
- Cylinders
- 4
- Consumption
- 13.5 L/h
- Aspiration
- TCAE
At a glance
Built for the site.
The physical details that matter for access, installation and service.
Weight
1900 kg
Dimensions
2900 x 1100 x 2070 mm
Noise
75dBA @ 7m
Fuel tank
310 L
Available configuration
Condition monitoring
Remote condition monitoring add-on, listed as optional extra on the JCB-powered Stage V range.
Datasheet
Technical specifications.
WP-JC60PXD
Power ratings
- Prime power
- 60 kVA
- Prime output
- 48 kW
- Rated voltage
- 400V
- Frequency
- 50Hz
- Phase
- 3ph
Engine
- Brand
- JCB
- Model
- 430TAG-55
- Mechanical output
- 53 kW
- Cylinders
- 4
- Arrangement
- In-line
- Displacement
- 3 L
- Bore × stroke
- 92 × 112 mm
- Aspiration
- TCAE
- Governor
- Electronic
- Emission standard
- EU Stage V
Alternator & control
- Alternator brand
- Meccalte
- Alternator model
- ECP322M 4V
- Controller
- Deep Sea Electronics DSE 7320 / 7420
- Controller brand
- Deep Sea Electronics
- Switchgear
- ABB 100A MCCB
- 400 V sockets
- 2x32A
- 230 V sockets
- 3x32A
Starting system
- Battery capacity
- 12V-150Ah
Fuel & fluids
- Fuel tank
- 310 L
- Consumption at 100%
- 13.5 L/h
- Consumption at 75%
- 12 L/h
Enclosure & physical
- Enclosure
- Galvanised steel, 275 gsm
- Enclosure type
- Silent
- Noise level
- 75dBA @ 7m
- Dimensions (L×W×H)
- 2900 x 1100 x 2070 mm
- Weight
- 1900 kg
Next step
Start with your load.
Share the load profile and site conditions. We will check the rating, tank and panel configuration.
