Stage V Generators · WP-YN40PXD
40kVA
Stage V compliant power for sites where emissions are regulated. The after-treatment is built in, so the set runs where older machines cannot.
Power platform
Yanmar · Meccalte
- Prime power
- 40 kVA
- Prime output
- 32 kW
- Voltage
- 400V
- Phase
- 3ph
Applications
Construction sitesUrban projectsLow-emission zonesInfrastructureEventsRental fleetsOne complete system
Everything in one enclosure.
Engine, alternator, control and acoustic canopy are matched as one set: deliver it, connect it, run it.
Yanmar 4TNV98CT
TC · 3.319 L displacement · 4 cylinders
Meccalte alternator
Delivers 40 kVA at 400V, 50Hz, 3ph.
Deep Sea Electronics DSE 7320 / 7420 controller
Auto start controller, used across WP-YN40PXD, the JCB-powered Stage V range (60-120 kVA) and the Volvo Penta back-up sets (PKGVP-200/250/320).
Acoustic enclosure
Galvanised steel, 275 gsm · 75dBA @ 7m

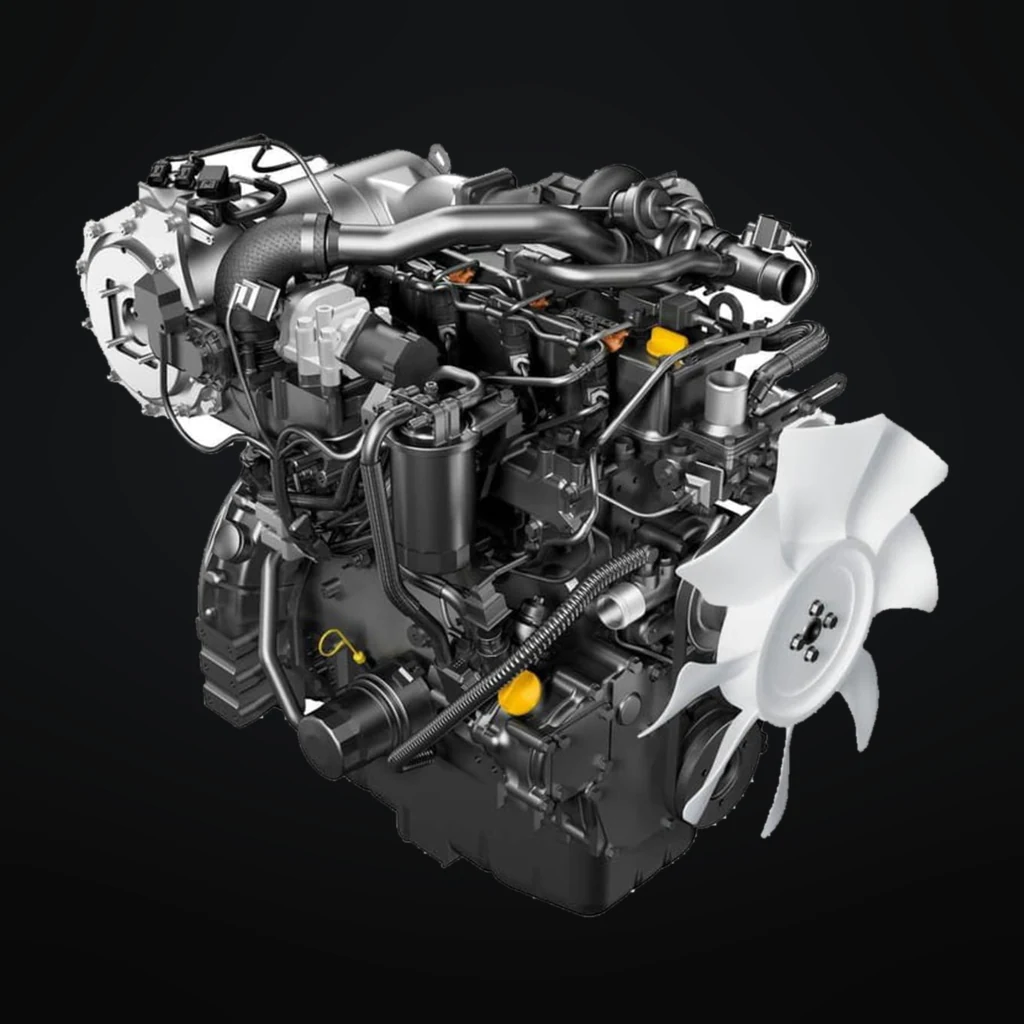

Yanmar 4TNV98CT
The engine
Built aroundthe engine.
Yanmar 4TNV98CT drives this set: 3.319 litres, 4 cylinders, TC.
- Displacement
- 3.319 L
- Cylinders
- 4
- Consumption
- 7.1 L/h
- Aspiration
- TC
At a glance
Built for the site.
The physical details that matter for access, installation and service.
Weight
1120 kg
Dimensions
2100 x 1000 x 1615 mm
Noise
75dBA @ 7m
Fuel tank
190 L
Datasheet
Technical specifications.
WP-YN40PXD
Power ratings
- Prime power
- 40 kVA
- Prime output
- 32 kW
- Rated voltage
- 400V
- Frequency
- 50Hz
- Phase
- 3ph
Engine
- Brand
- Yanmar
- Model
- 4TNV98CT
- Cylinders
- 4
- Arrangement
- In-line
- Displacement
- 3.319 L
- Bore × stroke
- 98 × 110 mm
- Compression ratio
- 17:1
- Aspiration
- TC
- Cooling
- Water cooled
- Fuel system
- Direct
- Governor
- Electronic
- Emission standard
- EU Stage V
Alternator & control
- Alternator brand
- Meccalte
- Alternator model
- ECP322S 4V
- Controller
- Deep Sea Electronics DSE 7320 / 7420
- Controller brand
- Deep Sea Electronics
- Switchgear
- ABB 63A MCCB
- 400 V sockets
- 1x32A
- 230 V sockets
- 3x32A
Starting system
- Battery
- Lead Acid
- Battery capacity
- 12V-100Ah
Fuel & fluids
- Fuel tank
- 190 L
- Consumption at 100%
- 7.1 L/h
- Consumption at 75%
- 5.4 L/h
- Coolant capacity
- 6.5 L
Enclosure & physical
- Enclosure
- Galvanised steel, 275 gsm
- Enclosure type
- Silent
- Noise level
- 75dBA @ 7m
- Dimensions (L×W×H)
- 2100 x 1000 x 1615 mm
- Weight
- 1120 kg
