Stage V Generators · WP-YN6PXD
4.4kVA
Stage V compliant power for sites where emissions are regulated. The after-treatment is built in, so the set runs where older machines cannot.
Power platform
Yanmar · Meccalte
- Prime power
- 4.4 kVA
- Prime output
- 4.4 kW
- Rated current
- 19.1 A
- Voltage
- 230V
Applications
Construction sitesUrban projectsLow-emission zonesInfrastructureEventsRental fleetsOne complete system
Everything in one enclosure.
Engine, alternator, control and acoustic canopy are matched as one set: deliver it, connect it, run it.
Yanmar L100V
Naturally aspirated · 0.435 L displacement · 1 cylinder
Meccalte alternator
Delivers 4.4 kVA at 230V, 50Hz, 1ph.
Deep Sea Electronics DSE 3110 controller
Auto start controller, used on WP-YN6PXD (6 kVA Stage V).
Acoustic enclosure
CRCA · 68dBA @ 7m

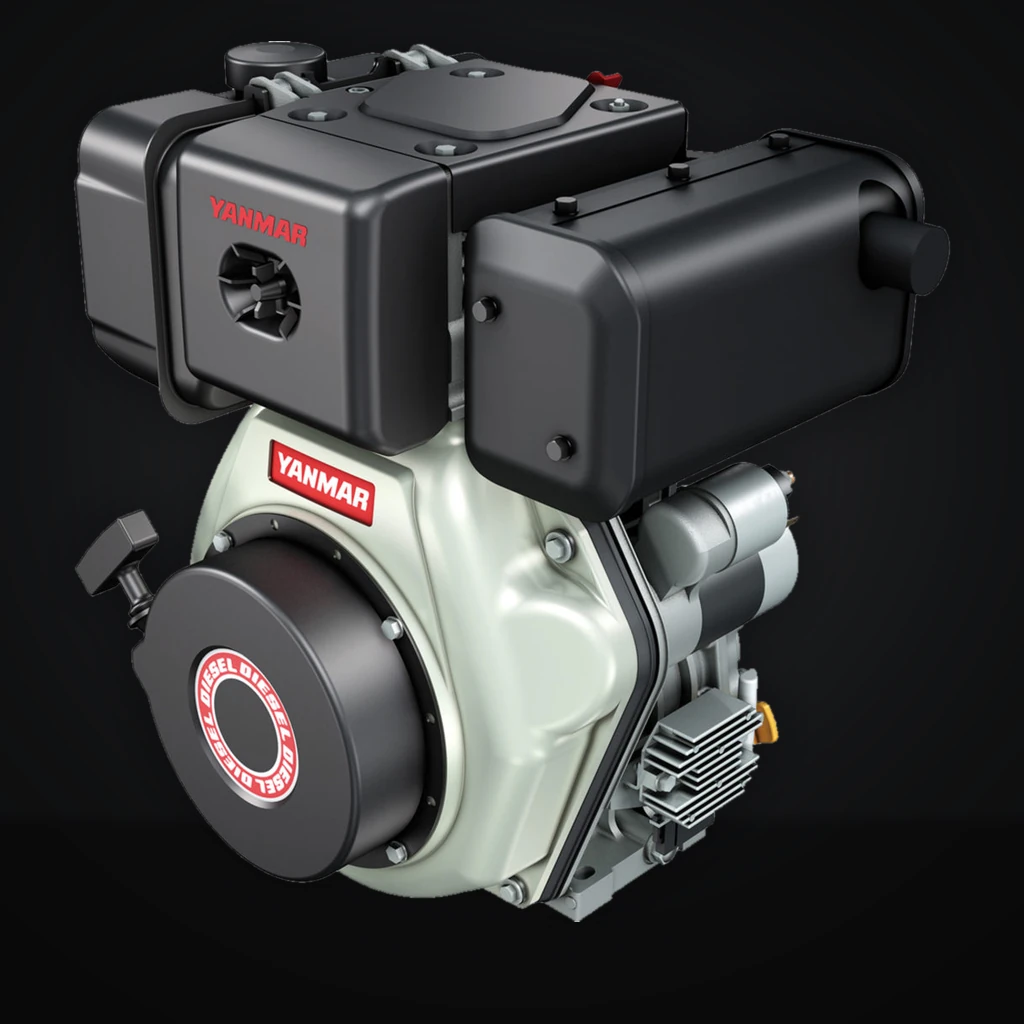

Yanmar L100V
The engine
Built aroundthe engine.
Yanmar L100V drives this set: 0.435 litres, 1 cylinder, naturally aspirated.
- Displacement
- 0.435 L
- Cylinders
- 1
- Consumption
- 1.2 L/h
- Aspiration
- Naturally aspirated
At a glance
Built for the site.
The physical details that matter for access, installation and service.
Weight
209 kg
Dimensions
960 x 580 x 815 mm
Noise
68dBA @ 7m
Fuel tank
25 L
Datasheet
Technical specifications.
WP-YN6PXD
Power ratings
- Prime power
- 4.4 kVA
- Prime output
- 4.4 kW
- Rated current
- 19.1 A
- Rated voltage
- 230V
- Frequency
- 50Hz
- Phase
- 1ph
Engine
- Brand
- Yanmar
- Model
- L100V
- Mechanical output
- 5.7 kW
- Cylinders
- 1
- Arrangement
- In-line
- Displacement
- 0.435 L
- Bore × stroke
- 86 × 75 mm
- Aspiration
- Naturally aspirated
- Cooling
- Air cooled
- Fuel system
- Direct
- Governor
- Mechanical
- Emission standard
- EU Stage V
Alternator & control
- Alternator brand
- Meccalte
- Alternator model
- S20W 95
- Controller
- Deep Sea Electronics DSE 3110
- Controller brand
- Deep Sea Electronics
- Switchgear
- ABB 25A MCB
- 230 V sockets
- 1x16A, 1x32A
- 110 V sockets
- 2x16A, 1x32A
Starting system
- Starter motor
- 12V / 1kW
- Battery
- Lead Acid
- Battery capacity
- 12V-45Ah
- Batteries
- 1
- Cold starting aid
- For site conditions < -5 degC
Fuel & fluids
- Fuel tank
- 25 L
- Consumption at 100%
- 1.2 L/h
- Consumption at 75%
- 0.8 L/h
Enclosure & physical
- Enclosure
- CRCA
- Enclosure type
- Silent
- Noise level
- 68dBA @ 7m
- Dimensions (L×W×H)
- 960 x 580 x 815 mm
- Weight
- 209 kg
Next step
Start with your load.
Share the load profile and site conditions. We will check the rating, tank and panel configuration.
